ENGR 211: STATICS & INTRODUCTION TO ENGINEERING MECHANICS

FALL 2023

STUDY SET #9 – INTERNAL LOADINGS

PROBLEMS: P7-1       DUE: NOV. 6

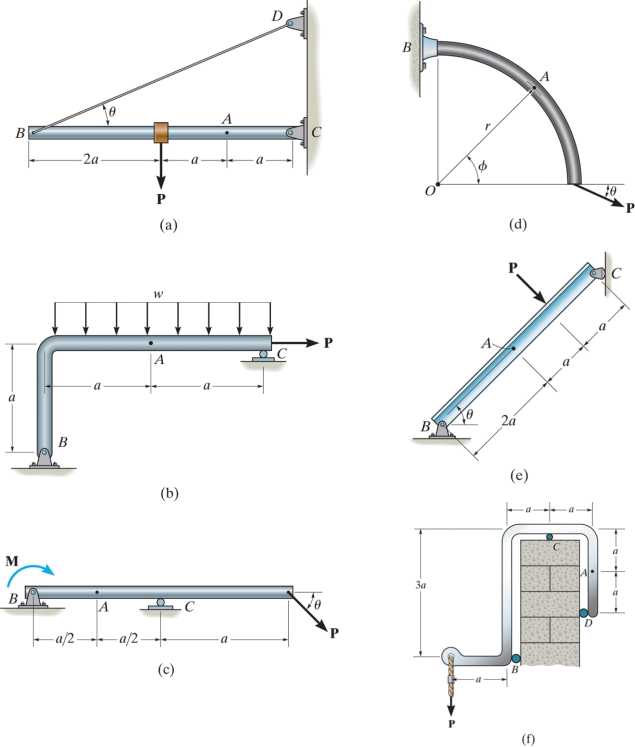

P7-1.   In each case, briefly outline the steps to find the resultant internal loading acting on the cross section at point A. Draw all necessary free-body diagrams, and indicate the relevant equations of equilibrium. Assume the lettered dimensions, angles, and loads are known. (Hint: you should draw two FBDs and write two sets of equilibrium equations for each case.)
