EE6309 - VLSI Systems
AY23/24 Semester 2 Assignment#1
Due Date: 6PM on 15 March (Friday) 2024 (Submission to S2-b2b-42 in Hardcopy)
Answer the following questions.

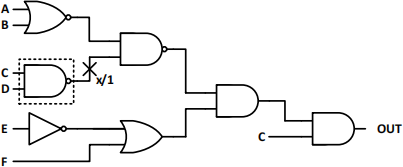

1) Assume that one of the NMOS devices in the boxed NAND2 in Figure 1 has stuck-open fault. Explain how to detect the suck-open fault.
Figure 1
(20 Marks)

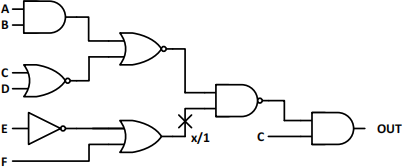

Figure 2
2) Derive all the test vectors that can detect the stuck-at fault indicated in Figure 2.
(10 Marks)
3) Among the test vectors derived in 2), which test vector shows the highest fault coverage?
(20 Marks)

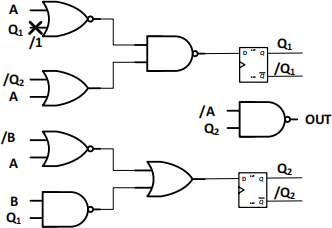

4) A sequential circuit with 2 inputs (A and B), 2-bit state memory, and 1 output (OUT) shown below needs to be tested. Find the sequence of the input vectors for testing the stuck-at fault indicated in the following sequential circuit. Assume that the initial state of the circuit is (Q1, Q2) = (0, 0). Can you reduce the number of the input vector sequence? Explain briefly.
Figure 3
(20 Marks)

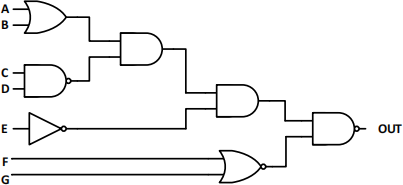

5) Derive the number of single stuck-at faults of the following logic circuit using fault collapsing. Use a fault diagram in derivation.
(10 Marks)

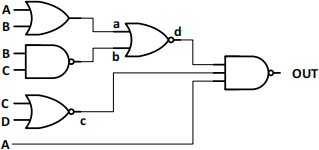

6) Determine the syndrome of the following logic circuit. Can you use the syndrome test to detect C/0? Explain why?
(10 Marks)
7) A BIST circuit is analyzing the signature of the input data stream (MSB)(101010110)(LSB) using Linear Feedback Shift Register (LFSR). The characteristic polynomial of the LFSR is x4 + x2 + 1. Draw the circuit diagram of the LFSR and calculate the signature of this test.
(10 Marks)
