CENV3020 GEOTECHNICAL ENGINEERING 2022/23
Hello, dear friend, you can consult us at any time if you have any questions, add WeChat: daixieit
ASSESSMENT PAPER 2022/23
TITLE - CENV3020 GEOTECHNICAL ENGINEERING
Question 1
Figure Q1 shows a propped embedded retaining wall, supported by an earth berm left on the excavation side of the wall.
(a). Explain why in practice you might leave an earth berm against a wall during the excavation process. [3 marks]
(b). Using the water levels indicated in Figure Q1, propose a suitable long-term steady-state set of pore water pressures around the wall. [5 marks]
(c). By considering the limiting equilibrium of a series of potential passive sliding wedges extending from the bottom corner of the wall, determine the maximum horizontal force that the soil is able to provide to maintain the stability of the wall. The wall and berm geometry, and soil and wall properties are given in Figure Q1. You may solve the problem either graphically by means of force vector diagrams, or algebraically by resolving forces. You should apply a factor of safety of 1.25 to tanφ’ , but do not apply an overdig to the excavation level shown. State clearly any assumptions that you need to make. [25 marks]
(d). Calculate the earth and water pressures acting on the active side
of the wall using a lower bound solution. Take Ka = 0.4491, which
has been determined for φ’design (= tanφ’/1.25) and δ = ⅔φ’ . You
should factor the surcharge applied to the retained ground surface
by 1.3. Convert the pressure distributions obtained into total force reactions acting on the active side of the wall. [6 marks]

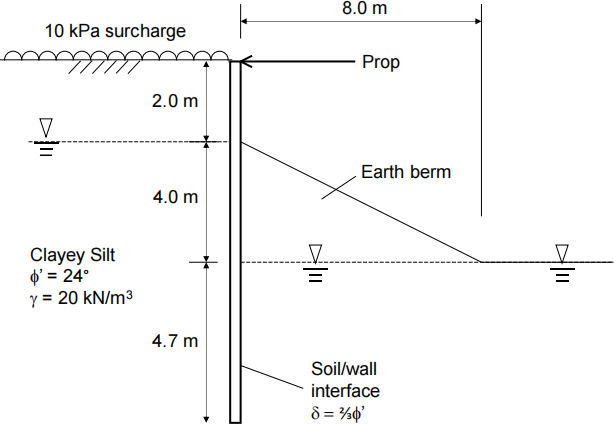

Figure Q1. Propped embedded wall retaining a clayey silt, supported by an earth berm.
(e). By taking moments around the top of the wall (where it meets the prop), show that the wall is approximately in moment equilibrium with the wall length of 10.7 m shown. State any assumptions that you need to make. [7 marks]
(f). Calculate the prop load. [2 marks]
(g). If the centreline of the excavation is 9 m away from the wall,
explain qualitatively how that might change your answers to parts (c) and (e) above. [3 marks]
(h). Explain qualitatively how you might test the stability of the proposed berm. [3 marks]
[Total Q1 = 54 marks]
Question 2
A contractor needs to design a set of foundations to support a reinforced concrete building. As the building does not follow a regular plan geometry, the column loads that the foundations must carry vary considerably, requiring a number of different foundation designs.
One foundation needs to carry a downward building column load of 500 kN. The short-term ground conditions, assuming the silt to be undrained, are given in Figure Q2 below.
(a). Determine the plan dimensions of a square concrete pad footing
required to carry the 500 kN applied column load. Assume that the
foundation will be a reinforced concrete pad 1 m deep, with the
founding plane at 1 m depth below ground level. You should apply
a factor of safety of 1.25 to tanφ’ . State any other assumptions that you need to make. [14 marks]
(b). Determine the minimum length of a single bored pile able to carry the 500 kN applied column load. Assume that the pile foundation will be constructed of reinforced concrete and is 0.5 min diameter. You should apply a factor of safety of 1.25 to tanφ’ and 1.4 to τu. Assume that the shear strength at the interface between the pile and the soil is given by δ = φ’ in effective stress conditions and τw = 0.5 × τu in total stress undrained conditions. State any other assumptions that you need to make. [19 marks]
(c). Comment on the answers that you have obtained for part (a) and part (b), in relation to the soil profile and soil strengths given in Figure Q2. [3 marks]
(d). For the building described at the start of the question, explain why
it will be important to consider the Serviceability Limit State (SLS) of the foundations in the design process. [3 marks]

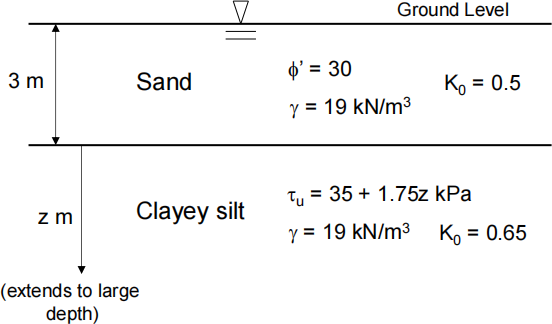

Figure Q2. Ground profile.
(e). Explain how a Continuous Flight Auger (CFA) pile is constructed.
Would this be a suitable form of construction for the pile considered in part (b)? [7 marks]
[Total Q2 = 46 marks]
Foundation bearing equations:
Drained bearing capacity equations:
σ'f = Nq sq dq σ’0 + Ny sy dy ry [0.5yB – Δu]
Nq = Kpeπtanφ'
Kp = (1 + sinφ') / (1 – sinφ')
Ny = (Nq – 1).tan(1.4φ')
sq = sy = 1 + 0.1Kp(B/L)
dq = dy = 1 + 0.1V(Kp) (D/B)
ry = 1
Undrained bearing capacity equations:
(σf - σ0) = (Nc sc dc) τu
Nc = 5.14
sc = 1+ 0.2(B/L)
dc = 1 + 0.23 x V[D/B] up to a maximum of 1.46 (D/B = 4)
Where:
B = Width of foundation
D = Depth of foundation
L = Length of foundation
2024-01-18
