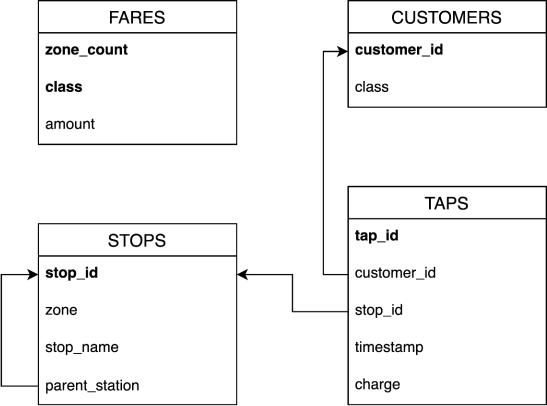

The TRAVEL database captures information about public transport users’ journeys  and their fares. The database includes four tables: CUSTOMERS, FARES, STOPS and  TAPS. Users travel around the network, “tapping on” with their fare card when they enter a station or vehicle, and “tapping off” when they exit a station or vehicle.

• CUSTOMERS stores each customer’s fare class (e.g., ‘Adult’ or ‘Concession’) and their fare card ID.

• FARES stores the price in cents, for each combination of class and the number of zones travelled.

• STOPS stores information about each stop on the network, particularly its name and fare zone.

–     Some stops are grouped together via the parent_station relation.

• TAPS stores the travel history of each customer, in the form of the stops they have tapped on or off at, and the fares they were charged along the way.

All fares are calculated with the “basic” method described in Assignment 1: a tap-on is free, and a tap-off incurs a (positive) charge determined by the inclusive count of  zones travelled as well as the customer’s fare class.

Please go to Blackboard and download the supplementary script file for this assignment, TravelDB.sql

Note: this file has been updated since Assignment 1. The first few lines of the updated file will contain a comment confirming it is for Assignment 2.

Section B — Assignment Tasks

You will first need to execute the script file TravelDB.sql to create and populate

your database before working on the following tasks. Wait until you see the message “DONE! All data has been inserted.” This may take a couple of minutes.

Tables and any triggers or sequences from Assignment 1 will also be dropped.

Tip: For faster reloading, you can export the database to a .dmp file.

Task 1 – Views

1. Write an SQL statement to find the top ten (10) stations by revenue. A station is defined as the stops sharing a parent_station, and is named by the

stop_name of the entry referred to by parent_station. Revenue for a trip is allocated to the tap-off stop. Your query should display the names of the

stations and the corresponding revenues, largest to smallest.

2. Write an SQL statement to refine your Task 1.1 query to include only revenue from users with the ‘Concession’ fare class who have travelled more than one zone. Your query should display the names of the stations and the

corresponding revenues.

3. Write an SQL statement to create a (virtual) view V_STATION_BOARDINGS

which shows boardings (tap-ons) at every station, aggregated by days of the week and by fare class. Your view should have a column for station name,

fare class, day of the week and boardings; and be sorted by the station name, day of the week (Sunday or Monday first) and fare class.

Hints: you may find the following document from Oracle useful for task 1.3.

https://docs.oracle.com/cd/B28359_01/server.111/b28286/functions001.htm#i88891 You may also wish to research the NLS_TERRITORY parameter.

4. Write an SQL statement to create a materialized view

MV_STATION_BOARDINGS that lists the same information as in Task 1.3.

5.  Execute the following two SQL statements. Report both their query execution time and query execution plan.

SELECT * FROM V_STATION_BOARDINGS;

SELECT * FROM MV_STATION_BOARDINGS;

Question: Did the materialized view improve the query efficiency? Explain your answer. Hint: Refer to both the elapsed time, and the cost in the execution plan.

Task 2 – Indexes

1.  The Marketing department has asked you to identify any stops which are  named similarly to characters from a recently-released movie. These stop names should contain a word starting with either of the following:

.    “A capital B, then zero or more vowels in any combination, then a single or double R, then zero or more vowels in any combination again, then a B.”

.    “A capital K, then one or more vowels in any combination, then an N.”

(For this purpose, a vowel is any of A, E, I, O, U or Y, and letters not explicitly described as capitals may be uppercase or lowercase.)

Write an SQL statement to find every stop matching the criteria, sorted alphabetically by stop_name.

Hint: A “regex” is an expression compactly describing patterns in text.

The following documentation maybe helpful:

https://docs.oracle.com/cd/B28359_01/server.111/b28286/ap_posix001.htm#SQLRF5542

. https://docs.oracle.com/cd/B28359_01/server.111/b28286/functions136.htm#SQLRF06300

2.  In order to potentially speed up the query in Task 2.1, a function-based index could be created on the STOPS table. Write an SQL statement to create an

index IDX_PINK that best fits this task.

3.  Report the execution time and execution plan of the SQL query you wrote in Task 2.1 before and after creating the index in Task 2.2.

Question: Did the index improve the query efficiency? Explain your answer.

Hint: You should look at both the elapsed time and the cost in the query execution plan.

4.  The Transport department would like to investigate their most consistent users. Write an SQL statement to count the number of tap-offs for which there are at   least 200 other tap-offs with the same combination of customer_id, stop_id and charge values.

5.  In order to potentially speed up the query in Task 2.4, bitmap indexes could be created on the TAPS table. Write the SQL statements to create indexes

BIDX_CUST_ID, BIDX_STOP_ID and BIDX_CHARGE that best fit this task.

6. Report the execution time and execution plan of the SQL query you wrote in Task 2.4 before and after creating the indexes in Task 2.5.

Question: Did the indexes improve query efficiency? Explain your answer.

Hint: You should look at both the elapsed time and the cost in the query execution plan.

Note: there’s at least two ways to do Task 2.4. One is initially slow, but better demonstrates the effect of the bitmap indexes.

SECTION C — Deliverables & Marking Scheme

The project is due by 4:00PM, 27 October 2023. Late submissions will be penalized unless you are approved for an extension (refer to Section 5.3 of the ECP).

You are required to turn in two files (use StudentID to name your files):

1.  StudentID.pdf: (replacing StudentID) – Submit on Blackboard via the Turnitin link “Report Submission”

A report that answers all the questions in Section 2 including all the necessary SQL statements and the screenshots of their outputs.

2.  StudentID.sql: (replacing StudentID) – Submit on Blackboard via the upload link “SQL Script Submission”

A plain-text script file that includes all your SQL statements.

Your report file should include the following content:

. Answers to all the questions in Section B.

.    If you are asked to write SQL statements, you need to include those statements in your report.

.    After you execute a SQL statement, if Oracle produces any output (e.g. query result, query execution time, query plan, etc), you should also include a

screenshot of the output as well.

Note: Please be sensible when including query output. Any output close to the size of one page can be shown by just including the first 10 lines and the last 10 lines. A report that includes multiple pages of a query output will lose

presentation marks. You may find some helpful instructions for formatting query output in Practical 1 or the following Oracle documentation.

https://docs.oracle.com/cd/A57673_01/DOC/server/doc/SP33/ch4.htm

Your script file must be in plain text ( .sql) format. You must make sure that your

script file can be executed on the ITEE lab computers by the “@” command. The

same SQL statements in your script file should also be copied and pasted into your  report file (as explained above). Even though the script file does not introduce any    new information compared to the report, it is intended to help the marking tutors to    quickly check the correctness of your SQL statements before checking the details in your report file.

Your Assignment 2 mark will be halved if you omit one of the script file or the report.

Enjoy the project! Good luck!
