Basic Gates and Boolean Logic
Question 1
(a) Published in Mock Exam
The following diagram shows a one bit de-multiplexor (dmux) chip.
This chip directs the signal from in to either a or b depending on the value of sel. The non selected ouput is zero.
Now, given the 1-bit dmux above, draw an implementation for a dmux with four outputs and a two-bitselector. In your diagram assume that in remains as one bit. [4 marks]
[Total for Question 1: 4 marks]
Boolean Arithmetic and ALU design
Question 2
For the following questions you may find the information in Figures 1 and 2 in the appendix of this paper useful.
(a) Published in Mock Exam
The following is a diagram the interface of a 1 bit half-adder:
a half-adder sums its two input bits to produce a sum bit and a carry bit. Answer the following:
i. Draw an implementation of a full-adder chip composed from half-adder chips and/or other gates. Recall that the interface for a full adder is:
[7 marks]
ii. Write the code in the PARTS section of a HDL file describing the full-adder you defined in your answer to part (i) above. In your code you must assume that the inputs to the full adder are as labelled in the diagram above. [6 marks]
[Total for Question 2: 13 marks]
Sequential Logic
Question 3
(a) Published in Mock Exam
Look at the following diagram for an invalid design for a 1-bit register from figure 3.1 of the textbook.
Answer the following.
i. Briefly explain what is wrong with the design of the register above. [2 marks]
ii. Draw a correct design for the 1-bit register above and write down the
equality that explains the relationship between the in and out wires. [4 marks]
[Total for Question 3: 6 marks]
Hack Assembler and Machine Code
Question 4
For the following questions you may find the information in Figures 3, 4, 5, 6, 7 and 8 in the appendix of this paper useful.
(a) Published in Mock Exam
Look at the following Hack machine code:
0000000000010000
1111110010001000
1111110000010000
0000000000000000
1110001100000001
0000000000000101
1110101010000111
Answer the following:
i. Using the instruction formats in Figures 3, 4, 5, 6, and 7 as a guide, write down the Hack assember instructions that are equivalent to this code. [7 marks]
ii. Describe what the machine code does. [3 marks]
[Total for Question 4: 10 marks]
Computer Architecture
Question 5
For the following questions you may find the information in Figures 1, 2, 3, 4, 5, 6, 7 and 8 in the appendix of this paper useful.
(a) Published in Mock Exam

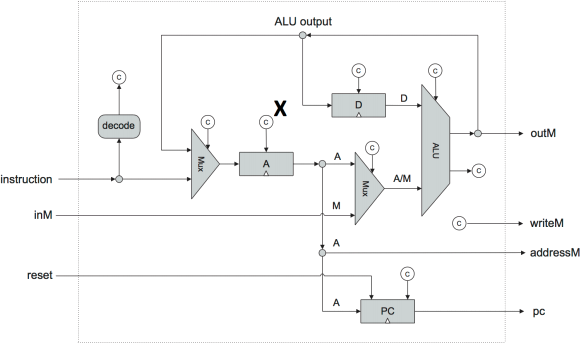

Look at the following partial diagram of a Hack CPU taken from Figure 5.9 of the textbook:
Some of the control logic is missing from this diagram. These missing gates and wires are marked with a Oc symbol. In the diagram one such section of missing control logic is marked with a large X. Given what you know about Hack instruction formats and ALU design, describe in detail what this missing control logic is.
Hint: feel free to use the figuresin the appendix for some of the information you need. [6 marks]
[Total for Question 5: 6 marks]
Assembler
Question 6
(a) Published in Mock Exam
Look at the following Hack assembler code:
@X
D=M
@END
D;JGE
@X
M=-M
(END)
@END
0;JMP
Hand-assemble this code by writing out the binary machine code the assembler would produce. For this question you may find the information in Figures 3, 4, 5, 6, and 7 useful. [9 marks]
[Total for Question 6: 9 marks]
Virtual Machine - Expressions
Question 7
(a) Published in Mock Exam
Translate the following Jack let statement into Hack Virtual Machine lan- guage:
let d = ((2 - x) * y) + 5
The variables d, x and y are in memory segment local at indexes 2,5 and 7 respectively. Assume there is a function named multiply that will take two arguments and return the result of multiplying the two numbers together. [8 marks]
[Total for Question 7: 8 marks]
Virtual Machine - Subroutines
Question 8
(a) Published in Mock Exam
The Hack Virtual Machine language provides three function related commands:
● call f m
● function f n
● return
i. Briefly describe what the function command does during program execu- tion. [2 marks]
ii. Briefly describe what the call command does during program execution. [7 marks]
iii. Briefly describe what the return command does during program execu-tion. [8 marks]
(b) Published in Mock Exam
The Hack Virtual Machine allocates an area of the stack for each active func- tion call. Briefly describe the structure of one of these stack frames immedi- ately after the execution of the function command in a Jack method that is declared with N parameters and M local variables. [9 marks]
[Total for Question 8: 26 marks]
Jack
Question 9
(a) Published in Mock Exam
Write a Jack program that calls a recursive function to calculate the 7th fi- bonacci number. The result must be placed in an int variable x. [8 marks]
[Total for Question 9: 8 marks]
Parsing
Question 10
(a) Published in Mock Exam
Show the two symbol tables for the following code just ater the last variable declaration in the method has been parsed.
class BankAccount
{
// Class variables
static string key ;
static int nAccounts ;
// Instance variables ;
field string owner ;
field int balance ;
method void transfer(int sum, BankAccount b2) {
var Date due ;
var int i,j ;
let i = sum ;
}
}
[10 marks]
[Total for Question 10: 10 marks]
Code Generation
Question 11
(a) Published in Mock Exam
Consider the following Jack method:
method int useless(String x, String y)
{
var Array local1 ;
var int local0 ;
var string local3 ;
}
What Hack Virtual Machine language code would implement the following
Jack program fragments if they were in the body of the method useless? i. let local1[7] = x ; [6 marks]
ii. return local0 + 1 ; [4 marks]
[Total for Question 11: 10 marks]
Jack OS, Optimisation
Question 12
(a) Published in Mock Exam
How do caches take advantage of temporal and spatial locality to improve the performance of a computer? [4 marks]
(b) Published in Mock Exam
What determines the minimum length of a clock cycle in a processor? [2 marks]
(c) Published in Mock Exam
The Jack Operating System provides a small number of libraries that extend the functionality of the Jack programming language. Excluding support for graphical user interfaces, identify two operating system services that are not provided by the Jack OS but are provided by Linux. In each case explain why the service is important. [4 marks]
[Total for Question 12: 10 marks]
