Data Analytics ECS648U/ ECS784U/ ECS784P

General information:

1. The resit involves resubmitting revised or new versions of Python and Bayesian coursework. This means you are free to submit a revised or a completely new document.

2. You should submit a single file containing both coursework submissions.

3. The resit resubmission represents an individual submission and should not be completed in groups. If you have previously been in a group for the Python coursework, you are allowed to improve parts of the initially submitted coursework, but you must do these revisions individually.

4. You are free to revise any sections and/or answers you wish across both Python and Bayesian parts. We will mark your revised work (marks can both decrease or increase).

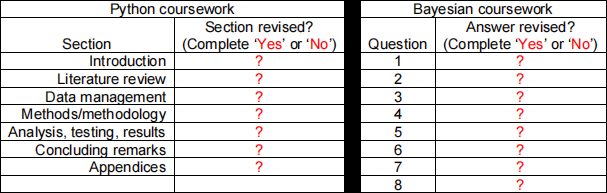

Use the table below to indicate the sections and answers that you have revised. If you are submitting a new document, tick all the sections/questions that apply.

5. The page and word limits still apply for both Python and Bayesian parts, as indicated in the coursework specifications that follow.

Python Example: Let us assume your previous Python submission used 9 out of the 10 pages limit. You decide to revise Sections ‘Analysis, testing, results’ and ‘Concluding remarks’. Let us assume that these two sections consisted of 3 pages in your initial submission. Your revised sections now consist of:

i. 2 pages in total: It is OK because this means the revised Python submission would consist of a total of 8 pages, which is within the 10 pages limit.

ii. 4 pages in total: It is OK because this means the revised Python submission would consist of a total of 10 pages, which is within the 10 pages limit.

iii. 5 pages in total: It is not OK because this means the revised Python submission would consist of a total of 11 pages. The last page from the revised work will not be marked.

1. Python coursework specification

The coursework is based on the Python lectures and labs. The resit resubmission must be completed individually. If you would like to re-do the coursework from scratch, the specification has not changed. That is, you are free to choose or collate your own dataset and apply two data analytic techniques to a real problem of your choice. In brief, you will:

i. Investigate the application area and prepare the Introduction along with a short literature review,

ii. Collect data,

iii. Clean and pre-process the data (if necessary),

iv. Apply two data analytic methods to the data,

v. Present and discuss results,

vi. Draw conclusions,

vii. Finalise the report covering all of the above (see below for marking criteria).

You should address a data-related problem in your professional field or a field you are interested in. If you are motivated in the subject matter the project will be more fun for you and you will likely produce a better report. The same applies to the data analytic methods; i.e., you are free to apply and test the methods of your choice from those covered in the Python labs or in the Python lectures.

1.1. Deliverables

The coursework deliverable takes the form of a mini conference paper. The report shall have a maximum length of 10 pages excluding References and Appendices. Font size should not be lower than 11 and Page margins should not be lower than 2 (these restrictions do not apply to the References and Appendices).

Reports should be written with a technical audience in mind. It should be concise and clear, adopting the same style you would use in writing a scientific report. Some of the components your report may include:

i. Problem statement and hypothesis.

ii. Description of your dataset and how it was obtained.

iii. Description of any data pre-processing steps you took.

iv. What you have learned from exploring the data, including visualisations.

v. How you chose which features to use in your analysis.

vi. Details of your modelling process, including how you selected your data analytic methods as well as the model through validation.

vii. Your challenges and successes.

viii. Key findings.

ix. Possible extensions or business applications of your project.

You should also create Appendices to your report that include:

i. Code: Sample commented Python scripts you have used to develop your project. The appendix code should not include code from the libraries – only some of the main commands you have used to call the Python libraries.

ii. Data: a sample of the data you used for your project, along with pointers to your data sources.

Note that while there is no page limit for References and Appendix, these sections should only include references, sample code and sample data. You should not add main text material to the appendices, such as results, as these will be out of the 10-page limit and will not be marked.

1.2. Marking criteria

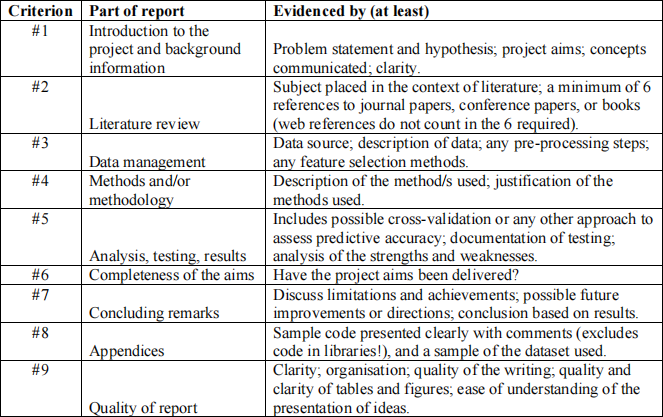

The table below lists the criteria we will take into consideration in assessing your project report.

2. Bayesian Coursework overview

● The coursework is based on the Bayesian material and must be completed individually.

● To complete the coursework, follow the tasks below and answer ALL questions enumerated in Section 2.1. It is recommended that you read the full document before you start completing the tasks enumerated below.

● What follows has been tested on Windows and MAC operating systems. There is a compatibility issue with MAC OS (and likely to extend to Linux) which is covered in the Bayesys manual (details below), but which does not influence the coursework submission requirements.

Task 1: Set up and reading

a) Visit http://bayesian-ai.eecs.qmul.ac.uk/bayesys/

b) Download the Bayesys user manual.

c) Set up the project by following the steps in Section 1 of the manual.

d) Read Section 2 of the manual.

e) Read Section 3.

f) Read Section 4.

g) Skip Section 5.

h) Read Section 6 and repeat the example.

i. MAC and Linux users will not be able to view the PDF graphs shown in Fig 6.1; i.e., the compatibility issue involves the PDF file generator.

ii. Skip subsections 6.3, 6.3.1, and 6.4.

i) Skip Section 7.

j) Skip Section 8.

k) Read Section 9.

l) Skip the appendices.

Task 2: Determine research area and collate data

You are free to choose or collate your own dataset. You should also determine the dataset size, both in terms of the number of variables and the sample size, relevant to the problem you are analysing. Some areas might require more data than others, and it is up to you to make this decision.

You should address a data-related problem in your professional field or a field you are interested in. If you are motivated in the subject matter the project will be more fun for you and you will likely produce a better report. The last page of this document provides a list of data sources you could consider.

You are allowed to reuse the dataset you prepared during the Python coursework, as long as a) your Python coursework submission was NOT a group submission, and b) you consider the dataset to be suitable for Bayesian network structure learning (refer to Question 1).

Lastly, you are not allowed to reuse datasets from the Bayesys repository for this coursework.

Task 3: Prepare your dataset for structure learning

a) The Bayesys structure learning system assumes the input data are discrete; e.g., low/medium/high or Yellow/Blue/Green, rather than a continuous range of numbers. If you have a continuous variable in your dataset with integers ranging, for example, from 1 to 100, the algorithm will assume that this variable has 100 different states (and many more if the values are not integer). This will make the dimensionality of the model unmanageable, leading to poor accuracy and high runtime; if this is not clear why, refer to the Conditional Probability Tables (CPTs) in the lecture slides and relevant book material.

You should discretise continuous variables to reduce the number of states to reasonable levels. For example, you could discretise the variable discussed above, with values ranging from 1 to 100, into the five states {“1to20”, “21to40”, “41to60”, “61to80”, “81to100”}. If a continuous variable incorporates a small number of different values (e.g., less than 10), it may not need discretisation.

It is up to you to determine whether a variable requires discretisation, as well as the level of discretisation. You are free to follow any approach you wish to discretise the variable, including discretising the variables manually as discussed in the above example. The structure learning accuracy is not expected to be strongly influenced as long as the dimensionality of the data is reasonable with respect to its sample size.

b) Your dataset must not have missing values (i.e., empty cells). Replace ALL empty cells with the value ‘missing’ (or use a different relevant name). This forces the algorithm to consider all missing values as an additional state. If missing data follows a pattern, this may or may not help the algorithm to produce a more accurate graph.

c) Rename your dataset to trainingData.csv and place it in folder Input.

Task 3: Draw out your knowledge-based graph

a) Use your knowledge to produce a knowledge causal graph given the variables in your dataset. You may find it easier if you start drawing the graph by hand.

b) Record this knowledge in a CSV file following the format of DAGtrue.csv as depicted in the Bayesys manual. For an example file, refer to file DAGtrue_ASIA.csv in project directory Sample input files/Structure learning.

c) Rename your knowledge graph file DAGtrue.csv and place it in folder Input.

d) Make another copy of the above file, rename it DAGlearned.csv and place it in folder Output.

e) Run the Bayesys NetBeans project and make sure your dataset is in folder Input and named trainingData.csv (as per Task 2c). Under tab Main, select Evaluate graph and the subprocess Generate DAGlearned.PDF. Then hit Run.

i. The system will generate the file DAGlearned.pdf in folder Output. This is your knowledge graph drawn by the system.

If you are working on MAC/Linux OS, the DAGlearned.pdf file is likely to be corrupted. If it is, you can use an online Graphviz editor such as the one available here: https://edotor.net/ . The Graphviz editor turns a textual representation of a graph into a visual drawing. Use the code shown below, as an example, and edit the code accordingly to be consistent with your DAGtrue.csv; e.g., the relationships can be taken directly from the CSV file. The graph should update instantly as you edit the code.

digraph {

Earthquake -> Alarm

Burglar -> Alarm

Alarm -> Call

}

ii. This step also generates some information in the terminal window of NetBeans. Save the last three lines as you will need them in answering some of the questions; i.e., the line outputs involving Log-Likelihood (LL) score, BIC score and the # of free parameters.

Task 4: Run structure learning

a) Run Bayesys.

i. Under tab Main, select Structure learning with algorithm SaiyanH (default selection), select Evaluate graph and the subprocess Generate DAGlearned.PDF.

ii. Under tab Learning select Save associational scores.

iii. Under tab Evaluation, make sure that all metrics are selected (they should be selected by default).

iv. Under tab Main, hit Run.

i. If your dataset consists of more than 50 variables and/or more than 100k samples (note: there is no requirement for your data to be this big or of a particular size), the learning process may take a while to complete, and this also depends on the number of states per variable (i.e., dimensionality of the data). For smaller datasets, this should complete within a few seconds or minutes. The text output generated in the terminal window of NetBeans indicates the status of learning; i.e., SaiyanH consists of three learning phases and these are reported in the terminal window of NetBeans.

b) Once the above process completes, the following outputs are generated by the system, which you should save as you will need it in answering some of the questions:

i. Text output in the terminal window of NetBeans.

ii. Files DAGlearned.csv and DAGlearned.pdf in folder Output. Both these files represent your learned graph. As stated Task 3e, you may have to use the online Graphviz editor if you work on MAC/Linux and DAGlearned.pdf is corrupted.

iii. Four CSV files in directory Output/SaiyanH.

c) Repeat the above process for HC and TABU algorithms and save all output information.

i. Note that subprocess Save associational scores does not apply to HC and TABU – so skip this activity.

ii. Keep in mind that, as stated in the Bayesys manual, Bayesys overwrites files in folder Output every time it runs. If you are experimenting and running the algorithms multiple times, you need to remember to rename the files so they are not overwritten by the next run.

Also if you happen to have one of the output files open – for example, looking at DAGlearned.pdf in Adobe Reader, and run Bayesys Evaluate, then Bayesys will not overwrite it (because Adobe has it locked) so in this case the output file will not reflect the latest run.

2.1. Questions

Important information:

● In your answer sheet, ensure you clearly indicate which answer corresponds to what question. For example:

“Answer 2: The steps I followed to produce the knowledge graph are…”

● DO NOT exceed the maximum number of words indicated for each question. For example, if a question restricts the answer to 100 words, only the first 100 words will be considered in marking the answer.

● Answer the questions in your own words. Copying text from relevant resources will not give you many marks.

Question 1: Discuss the research area and the dataset you have selected or collated for this coursework, along with pointers to your data sources. Screen-capture part of the dataset and present it here as a Figure (e.g., if your dataset contains 15 variables and 1,000 samples, you could show the first 10 columns and a small part of the sample size). Explain why you considered this dataset to be suitable for BN structure learning, and what questions do you expect structure learning to answer.

Maximum number of words: 200

Marks: 5

Question 2: Present the knowledge graph and describe the steps you have followed to produce the graph. For example, what information did you use? Did you refer to the appropriate literature to obtain the necessary knowledge or did you consider your current knowledge to be sufficient for this problem? If you referred to the literature to obtain additional information, provide links to the papers you have read and very briefly describe the knowledge gained from each paper. If you did not refer to the literature, justify why you consider your knowledge to be sufficient.

[NOTE: It is possible to obtain maximum marks without referring to the literature, as long as you clearly justify why this step was not needed].

Maximum number of words: 250

Marks: 5

Question 3: Read the research paper entitled “Learning Bayesian networks that enable full propagation of evidence”. This paper describes and evaluates the SaiyanH algorithm. It can be downloaded from this link: https://ieeexplore.ieee.org/abstract/document/9136714

Investigate the four CSV files generated in Task 4 during structure learning with SaiyanH. List the number of scores generated in each CSV file. For example, if marginalDep.csv has 100 rows of scores, then you should write ‘100’ for that particular file. Explain the different quantities in scores generated in each file. Why do you think there are, for example, 100 scores in the file marginalDep.csv and, for example, 200 scores in the file conditionalInsignificance.csv?

Maximum number of words: 100

Marks: 5

Question 4a: Refer to the outputs generated in the terminal window of NetBeans during Task 4. Copy, in your answer, the terminal outputs as a Figure, for all the three algorithms. If the information does not fit well into a single figure, you can split it into multiple figures for each algorithm. Make sure the figures show the number of variables and sample size (found under Training data info in the terminal), the scores for Precision, Recall, F1, SHD, BSF, LL, BIC, the # of free parameters (found under Evaluation), and the elapsed runtime (found under Structure learning), for all the three algorithms.

Refer to the F1, SHD and BSF scores produced by SaiyanH and compare them to the related scores shown in Fig 2 of the related research paper (link already provided in Q3). Are your scores mostly lower, on par, or higher (in general) compared to those shown in Fig 2 of the research paper, and with respect to SaiyanH (ignore the results produced by the other algorithms)? Which results did you expect (if any) and which did you not expect (if any)? Explain why.

Maximum number of words: 200

Marks: 5

Question 4b: Further to Q4a, compare the F1, SHD and BSF scores generated across all the three algorithms. Rank the three algorithms by score performance. Which results did you expect (if any) and which did you not expect (if any)? Explain why.

Maximum number of words: 200

Marks: 5

Question 5: Refer to your elapsed structure learning runtime for SaiyanH and compare it to the runtime shown in Table 3 of the related research paper (link already provided in Q3). Indicate whether your results are consistent or not with the results shown in Table 3, and explain why.

Maximum number of words: 100

Marks: 5

Question 6: Compare the BIC scores generated at Task 4, across all the three algorithms, with the BIC score generated at Task 3. What do you understand from the difference between those four scores? Which results did you expect (if any) and which did you not expect (if any)? Explain why.

Maximum number of words: 200

Marks: 5

Question 7: Compare the # of free parameters generated at Task 4, across all three algorithms, with the # of free parameters generated at Task 3. What do you understand from the difference between these four values? Which results did you expect (if any) and which did you not expect (if any)? Explain why.

Maximum number of words: 200

Marks: 5

Question 8: Refer to Week 11 Lecture and Tutorial 2, and select two information fusion methods to apply to the structure learning process of all three algorithms. Each information fusion method should be applied independently to structure learning. It is up to you to decide how much knowledge/information to provide to each information fusion method.

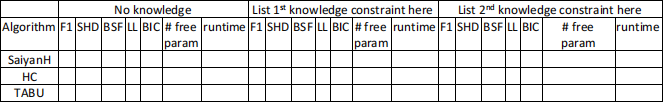

Complete the table below for all nine experiments; i.e., three structure learning runs without information fusion (these can be taken from your previous answers/tasks), three runs based on your first information fusion selection, and another three runs based on your second information fusion selection. To display the table clearly, you may have to move it to a separate page with Landscape orientation with narrow margins.

Explain the differences in scores with and without knowledge. Which results did you expect (if any) and which did you not expect (if any)? Explain why.

Maximum number of words: 350

Marks: 1011

3. Data sources

Using public data is the most common choice. If you have access to private data, that is also an option, though you will have to be careful about what results you can release. Some sources of publicly available data are listed below (you don`t have to use these sources).

● UK Covid Data

https://coronavirus.data.gov.uk/

Official UK COVID data

● Data.gov

http://data.gov

This is the resource for most government-related data.

● Socrata

http://www.socrata.com/resources/

Socrata is a good place to explore government-related data. Furthermore, it provides some visualization tools for exploring data.

● US Census Bureau

http://www.census.gov/data.html

This site provides information about US citizens covering population data, geographic data, and education.

● UN3ta

https://data.un.org/

UN data is an Internet-based data service which brings UN statistical databases.

● European Union Open Data Portal

http://open-data.europa.eu/en/data/

This site provides a lot of data from European Union institutions.

● Data.gov.uk

http://data.gov.uk/

This site of the UK Government includes the British National Bibliography: metadata on all UK books and publications since 1950.

● The CIA World Factbook

https://www.cia.gov/library/publications/the-world-factbook/

This site of the Central Intelligence Agency provides a lot of information on history, population, economy, government, infrastructure, and military of 267 countries.

● Health Data

Healthdata.gov

https://www.healthdata.gov/

This site provides medical data about epidemiology and population statistics.

● NHS Health and Social Care Information Centre

http://www.hscic.gov.uk/home

Health datasets from the UK National Health Service.

● Social Data

Facebook Graph

https://developers.facebook.com/docs/graph-api

Facebook provides this API which allows you to query the huge amount of information that users are sharing with the world.

● Topsy

http://topsy.com/

Topsy provides a searchable database of public tweets going back to 2006 as well as several tools to analyze the conversations.

● Google Trends

http://www.google.com/trends/explore

Statistics on search volume (as a proportion of total search) for any given term, since 2004.

● Likebutton

http://likebutton.com/

Mines Facebook's public data--globally and from your own network--to give an overview of what people "Like" at the moment.

● Amazon Web Services public datasets

http://aws.amazon.com/datasets

The public data sets on Amazon Web Services provide a centralized repository of public data sets. An interesting dataset is the 1000 Genome Project, an attempt to build the most comprehensive database of human genetic information. Also a NASA database of satellite imagery of Earth is available.

● DBPedia

http://wiki.dbpedia.org

Wikipedia contains millions of pieces of data, structured and unstructured, on every subject. DBPedia is an ambitious project to catalogue and create a public, freely distributable database allowing anyone to analyze this data.

● Freebase

http://www.freebase.com/

This community database provides information about several topics, with over 45 million entries.

● Gapminder

http://www.gapminder.org/data/

This site provides data coming from the World Health Organization and World Bank covering economic, medical, and social statistics from around the world.

● Google Finance

https://www.google.com/finance

Forty years' worth of stock market data, updated in real time.

● National Climatic Data Center

http://www.ncdc.noaa.gov/data-access/quick-links#loc-clim

Huge collection of environmental, meteorological, and climate data sets from the US National Climatic Data Center. The world's largest archive of weather data.

● WeatherBase

http://www.weatherbase.com/

This site provides climate averages, forecasts, and current conditions for over 40,000 cities worldwide.

● Wunderground

http://www.wunderground.com/

This site provides climatic data from satellites and weather stations, allowing you to get all information about the temperature, wind, and other climatic measurements.

● Football datasets

http://www.football-data.co.uk/

This site provides historical data for football matches around the world.

● Pro-Football-Reference

http://www.pro-football-reference.com/

This site provides data about football and several other sports.

● New York Times

http://developer.nytimes.com/docs

Searchable, indexed archive of news articles going back to 1851.

● Google Books Ngrams

http://storage.googleapis.com/books/ngrams/books/datasetsv2.html

This source searches and analyses the full text of any of the millions of books digitized as part of the Google Books project.

● Million Song Data Set

http://aws.amazon.com/datasets/6468931156960467

Metadata on over a million songs and pieces of music. Part of Amazon Web Services.
