COMPSCI 752
Big data management
Assignment 2 / Semester 1, 2023
Graph Databases
Model Answers
Graph databases
Consider a simple application where direct flights between two cities are stored as a property graph. Nodes and edges may have properties.

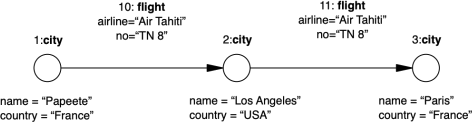

Fig. 1. Property Graph
Questions:
1. Write down the formal property graph model (V, E, n, A, u) for the property graph in Figure 1. [6 marks]
Solution:
– V = {1, 2, 3}
– E = {10, 11}
– n:
. 10 →l (1, 2), 11 →l (2, 3)
– A:
. 1 → {city}, 2 → {city}, 3 → {city},
. 10 → {flight}, 11 → {flight}
– u:
. (1, name) → “Papeete”, (1, country) → “France”
. (2, name) → “Los Angeles”, (2, country) → “USA”,
. (3, name) → “Paris”, (3, country) → “France”,
. (10, airline) → “Air Tahiti”, (10, no) → “TN 8”,
. (11, airline) → “Air Tahiti”, (11, no) → “TN 8”,
2. Write the following English language query in regular property graph logic
Return all city nodes that can be reached from the city of Papeete with a sequence of connecting flights with at most two stop-overs. [4 marks]
Solution:
result(3) - :flight(y, 3), y.name = “Papeete”
result(3) - :flight(y, z1), :flight(z1, 3), y.name = “Papeete”
result(3) - :flight(y, z1), :flight(z1, z2), :flight(z2, 3), y.name = “Papeete”
3. Write the following English language query in regular property graph logic
Return all city nodes that can be reached from the city of Papeete with a sequence of connecting flights that have an unlimited number of stop-overs. [4 marks]
Solution:
result(·) - :flight(y, 3), :flight* (3, ·), y.name = “Papeete”
4. Write the following English language query in regular property graph logic
Return all city nodes in France, with a name different from Papeete, that can be reached from the city of Papeete with a sequence of connecting flights that have an unlimited number of stop-overs, where each flight is international and operated by the airline “Air Tahiti” . [4 marks]
Solution:
reach(3, ·) - :flight(3, ·) as k, k .airline = “Air Tahiti”, 3 .country · .country
result(·) - :reach(y, 3), :reach* (3, ·), y.name = “Papeete” ,
· .country = “France” , · .name “Papeete”
5. Write down the queries from Questions 2., 3., and 4. in regular property graph algebra.
Solution:
(b)
Bat(0)rg1 (Ba (:flight)n Ba (:flight, :flight)n Ba (:flight, :flight, :flight))
② 1 : src1.name = “Papeete”
②2 : ② 1 A trg1 = src2
②3 : ②2 A trg2 = src3
(c)
Bas(0)rc1 ╱Batr(②)g2 ,trg2 (:flight, :flight* )、
② : src1.name = “Papeete” A trg1 = src2
(d)
Bas(0)rc1 ╱Batr(v)g2 ,trg2 ╱flight, ╱Bascr1(②) ,trg1 (:flight)、*、、
② : edge.airline = “Air Tahiti”A src1.country trg1.country
w : src1.name = “Papeete” A trg1 = src2A
edge1.airline = “Air Tahiti” A src1.country trg1.countryA trg2.country = “France” A trg2.name “Papeete”
[12 marks]
